Designed with plastic case,cost saving.
With high protection degree(iIP66).
Variou actuators are available.
Widely applied in transfer handing machinery,ma-chine tool equipment,automation etc.
Limit switch,Limit switches,Plastic limit switch,Roller Plunger Limit Switch,Types Of Electrical Limit Switches.
| Rating | AC-15：250V/6A；DC-13：220V/0.3A | |
| Initial contact resistance | 25mΩ max. | |
| Initial insulation resistance | 100MΩ min.(at 500V DC) | |
| Dielectric strength | Between non-consecutive terminals | 1,000Vrms,50/60Hz,1 min |
| Between non-current carrying metal parts and each termina | 1,500Vrms,50/60Hz,1 min | |
| Between ground and each terminal | 1,500Vrms,50/60Hz,1 min | |
| Shock resistance | Mechanical durable | 1000m/s²{100G,S}max. |
| Malfunction | 300m/s²{30G,S}max | |
| Vibration resistance | 10-55Hz,1.5mm double amplitude | |
| Operating life | Mechanical life | 1,000,000 Min. |
| Electrical life | 500,000 Min. | |
| Ambient temperature | -20℃ to +70℃ | |
| Ambient humidity | 95%RH Max | |
| Operating frequency | Mechanical | 120 times/min. |
| Electrical | 30 times/min. | |
| Operating speed | 5-500mm/s | |
| Protection degree | IP65 | |
Related Products

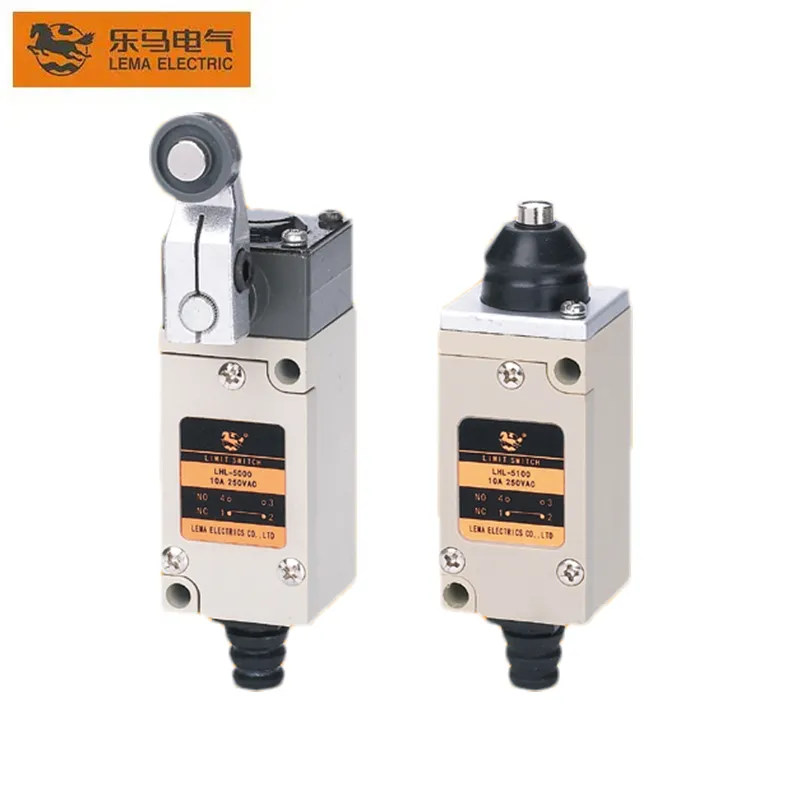

● Compact design,suit for small space. ● Dust proof,water proof and oil proof structure(IP65). ● Strong body,long mechanical life. ● Widely applied in transfer handling machinery,machine tool equipment,automation etc.
View Details

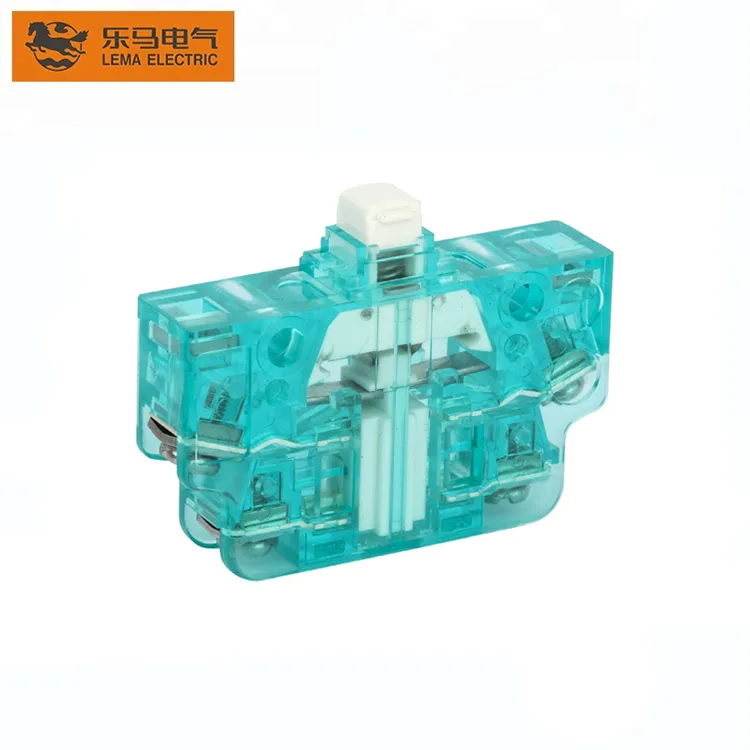

Indepent double circuit design, high stability of performance; Forced disonnection function; Fast action, long mechanical life; High corrosion resistance; Magnetic Blowout are available; Widely used in power distribution cabinet operating mechanism, machine tool, automation etc.
View Details

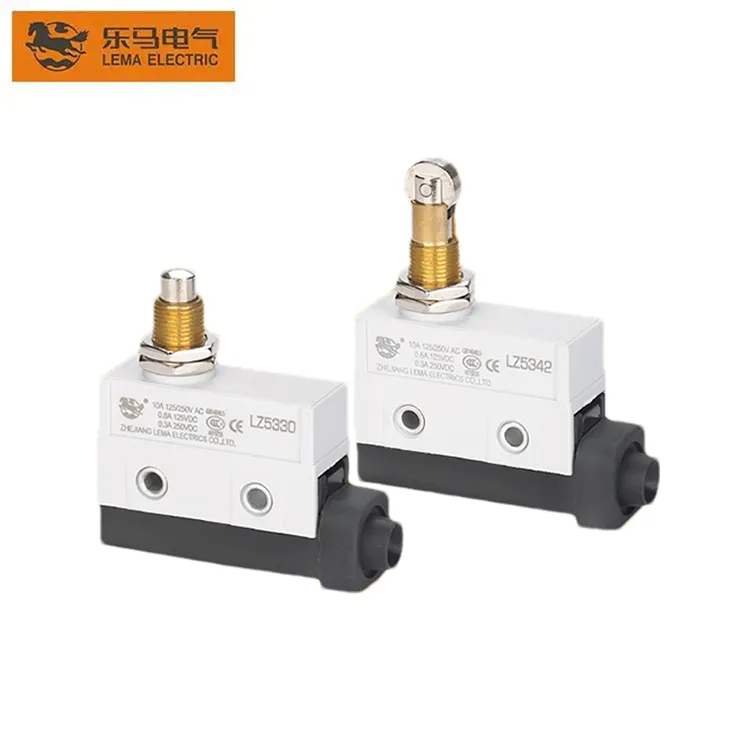

● Dust proof,oil proof,water proof design(IP65). ● Various actuator are available. ● High mechanical life and mechanical strength. ● High precision,fast action. ● Widely applied in production equipment,machinery,automation etc. ● CCC,CE approvals.
View Details

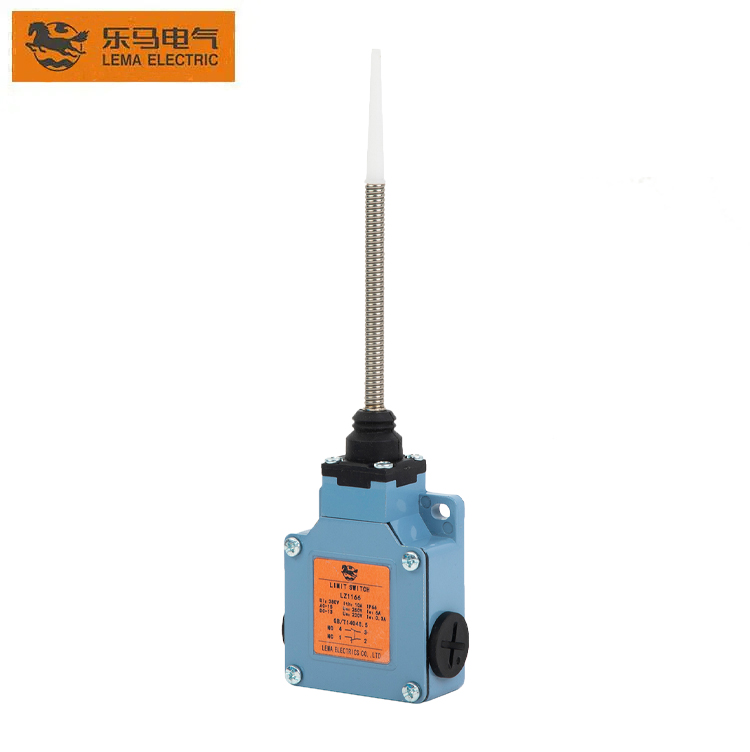

● High Mechanical Strength With Aluminum Alloy Body ● Dust Proof,Water Proof,Oil Proof Structure(IP66) ● Various Actuators Are AVAILABLE ● Widely Applied in Transfer handing Machinery,Machine tool Equipmen,Automation etc. Limit switch ,oil proof limit switches,waterproof limit switch,Dust proof limit switches.
