●Dust proof, water proof(IP67)
● Compact design, small size
● High operating life, high reliability

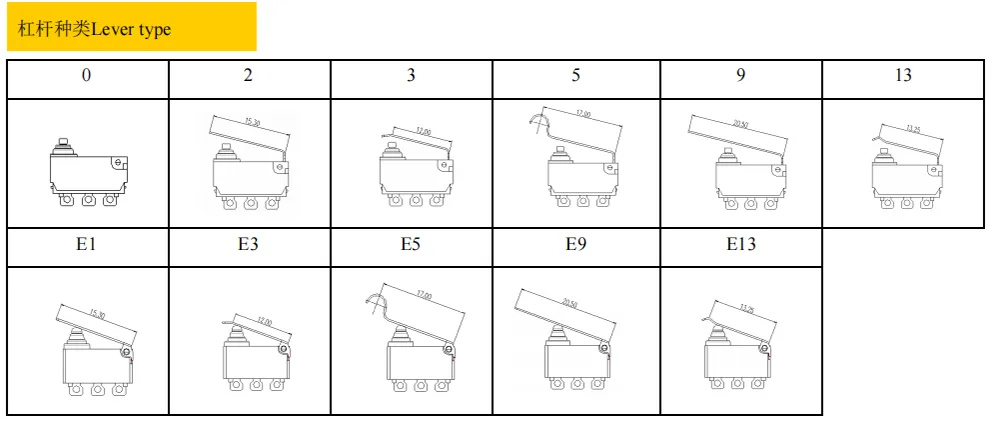

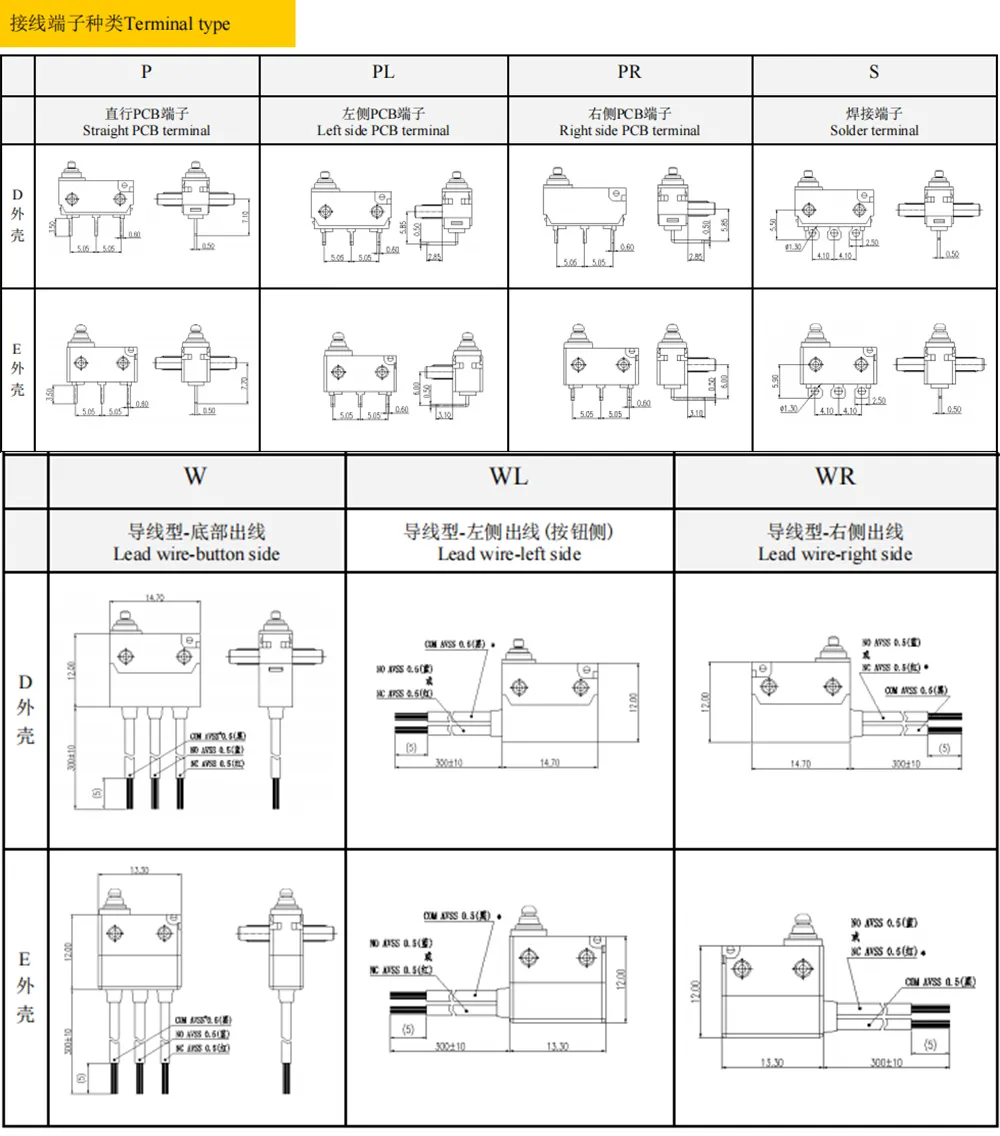

● Various levers and terminals are available.

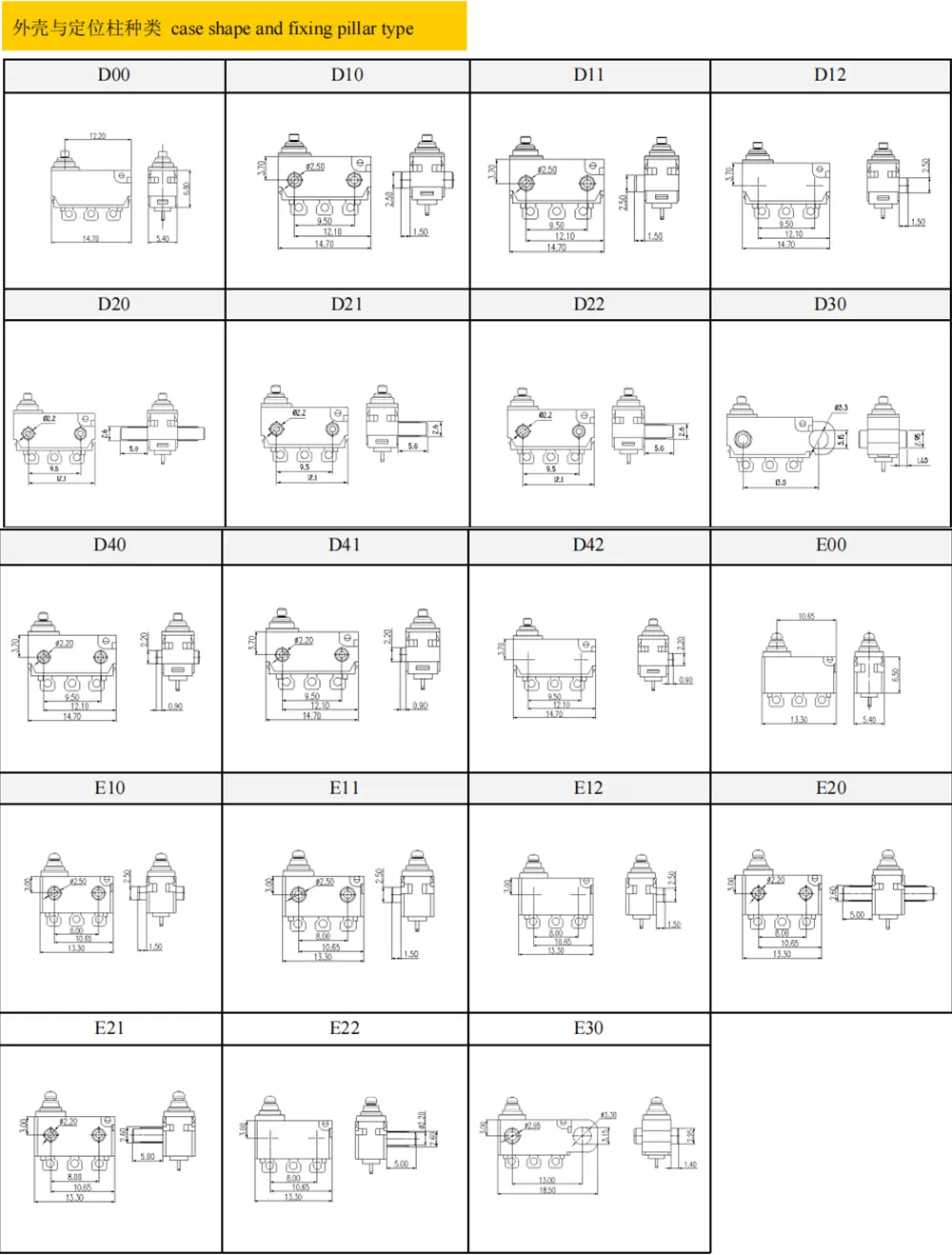

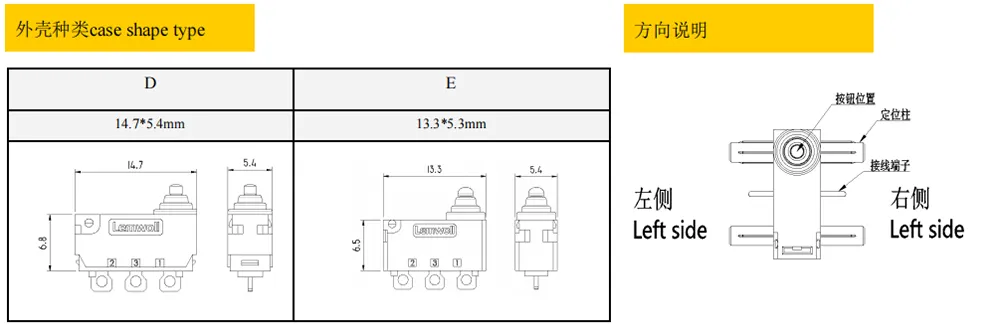

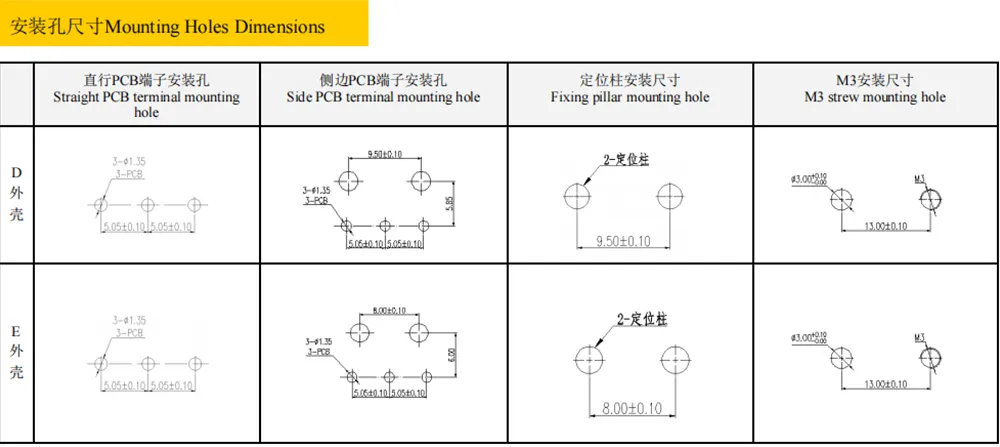

● Various case shape and pillar mounting dimensions.
●Widely used in home appliance, auto electronic, automation area etc.
Waterproof micro switch,water proof micro switch,water proof mini micro switches,micro switches
| Rating | 0.1A 125/250VAC;0.1A 48VDC;3A 12VDC | |
| lnitial contact resistance | ≤100mΩ （without wirelead） | |
| Initial insulation resistance | ≥100 MΩ (At 500V DC) | |
| Dielectric strength | Between non-consecutive terminals | 500VAC 50/60Hz 1min |
| Between non-current carrying metal parts and each terminal | 1500VAC 50/60Hz 1min | |
| Between ground and each termina | 1500VAC 50/60Hz 1min | |
| Shock resistance | Durable | ≤1,000m/s2 |
| Malfunction | ≤300m/s2 | |
| Vibration resistance | 10-55Hz,1.5mm double amplitude | |
| Operating life | Mechanical life | ≥500,000 operations |
| Electrical life | ≥100,000 operations | |
| Ambient temperature | -20℃ to +70℃ | |
| Operating frequency | 1-500mm/s | |
| Protection degree | IP67 | |
