Long Life Micro Switch selection starts with the installed duty, not a broad catalog label. Define the mechanism, circuit, environment, mounting, and validation target before approving a sample. A component can look similar while carrying different terminal, travel, contact, or test limits.
Part 1. What does long life mean for a micro switch?
The useful definition is functional: the selected switch must repeat the intended state change in the real mechanism and circuit. Start with the application drawing, then compare the actual model documentation rather than relying on an application name alone.
| Selection field | Input to document | Why it matters |
|---|---|---|
| Function | Free and operated state | Prevents incorrect circuit behavior |
| Mechanism | Travel, force, and side load | Controls reliable actuation |
| Circuit | Voltage, current, load, inrush | Controls contact suitability |
| Environment | Contamination, vibration, temperature, ingress | Defines validation conditions |
Use the LEMA Micro Switch product line for category routing, then confirm the final option from the model information.
Part 2. Which duty-cycle fields should be defined first?

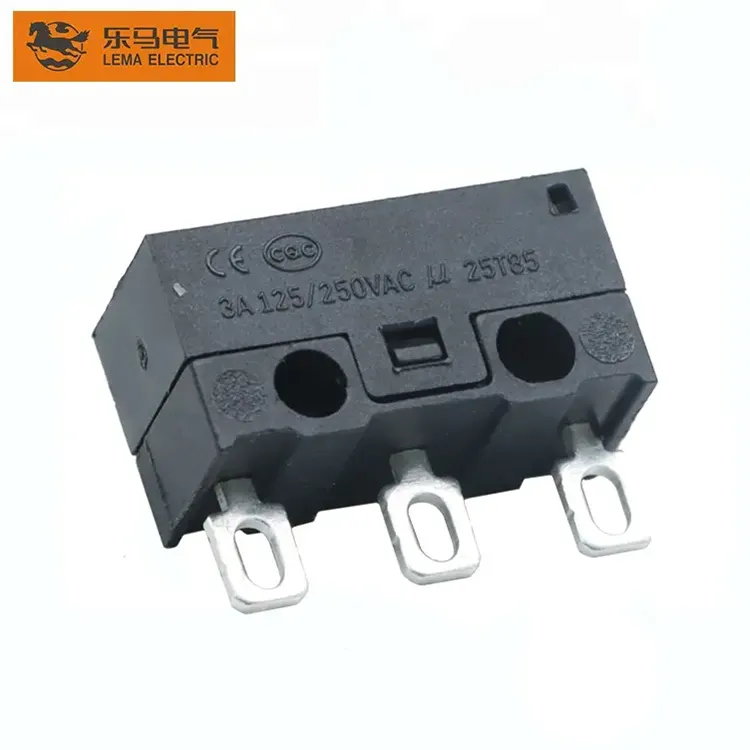

Document where the moving feature meets the actuator and how the bracket controls travel. The drawing should show free position, operating position, release, maximum travel, and clearance to adjacent parts.
Where a remote cam or linkage needs extra reach, review the long-arm mechanical actuation approach before selecting a lever arrangement.
Part 3. How do contact load and inrush affect life planning?
Translate the application environment into concrete exposure inputs: dust, splash, cleaning method, vibration, temperature, service access, and cable movement. An enclosure claim does not automatically establish the rating of the complete actuator or harness assembly.
For a factory cable joint and ingress-rated harness question, follow the IP67 cable harness selection method.
Part 4. Why do actuator travel and overtravel matter?
Contact load is more than a nominal current number. Confirm voltage, load type, inrush, switching frequency, and controller interface against the selected model documentation. Mechanical cycling and electrical switching should be included together in the application plan.
| Validation check | Question | Risk if missed |
|---|---|---|
| Actuation | Does every tolerance stack reach the operating window? | Missed or false signals |
| Load | Is the electrical duty documented? | Contact degradation |
| Mounting | Is side load controlled? | Operating-point drift |
| Harness | Is the terminal protected from pull and abrasion? | Early installation failure |
Part 5. Which environmental and assembly factors shorten service life?
Validate with production-intent brackets, actuators, harnesses, and control inputs. Test nominal and tolerance-extreme assemblies, then document what requires revalidation when a component, wire route, or mating part changes.
- Check free, operating, and release states.
- Inspect for side load and overtravel.
- Cycle the actual load and mechanism.
- Review vibration, contamination, and service-access effects.
Part 6. What belongs in the RFQ and Fit Boundary?
RFQ input checklist
- Function and required contact state
- Load, inrush, voltage, current, and controller input
- Actuator path, mounting drawing, and terminal or harness plan
- Environment, target validation, volume, and sample timing
Fit Boundary
This guide supports an OEM selection plan. It does not certify an application, establish a safety function, or prove a model-specific rating or life result.
Part 7. How can LEMA support a cycle-life inquiry?

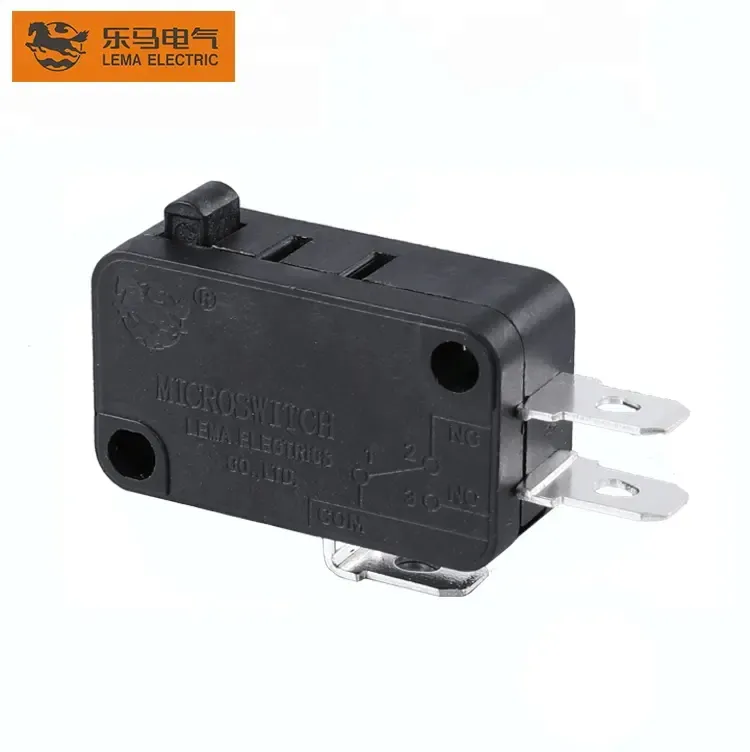

Use the LEMA Micro Switch product line as a public starting point for an OEM component inquiry. Supply the actual mechanism, circuit, and environmental inputs for model review.
Product recommendation: request a LEMA review after the RFQ fields are complete. Do not select a part solely from a generic industrial or long-life label.
Send an OEM switch RFQ with the application package.
FAQs
What does long life mean for a micro switch?
Does a higher mechanical life prove electrical life?
How does actuator travel affect cycle life?
Can contact material be selected from a generic label?
What should be tested before release?
What belongs in a long-life micro switch RFQ?
What does long life mean for a micro switch?
It means that the component is chosen and validated against a defined mechanical and electrical duty; it is not a universal life guarantee.
Does a higher mechanical life prove electrical life?
No. Electrical duty, inrush, arc energy, switching frequency, and protection can change the result substantially.
How does actuator travel affect cycle life?
Poorly controlled travel, side load, or excessive overtravel can change the operating point and increase wear in the installed mechanism.
Can contact material be selected from a generic label?
No. The actual load and model documentation must be reviewed; generic material claims do not establish project suitability.
What should be tested before release?
Test the real mechanism, contact load, wire routing, environmental exposure, and tolerance extremes using an agreed validation plan.
What belongs in a long-life micro switch RFQ?
Provide cycle target, load profile, inrush, actuator travel, mounting, environment, validation method, volume, and sample timing.
