Micro switch cleaning solvents must be assessed for the exact switch, surrounding materials and cleaning process before exposure. A cleaner that removes visible contamination is not automatically compatible with the housing, actuator, seals, markings, lubricant or contact system. Nor does a water-protection description establish resistance to a chemical bath, spray or ultrasonic process. Obtain the manufacturer’s supported conditions and qualify the complete assembly instead of trying an unspecified solvent on production parts.

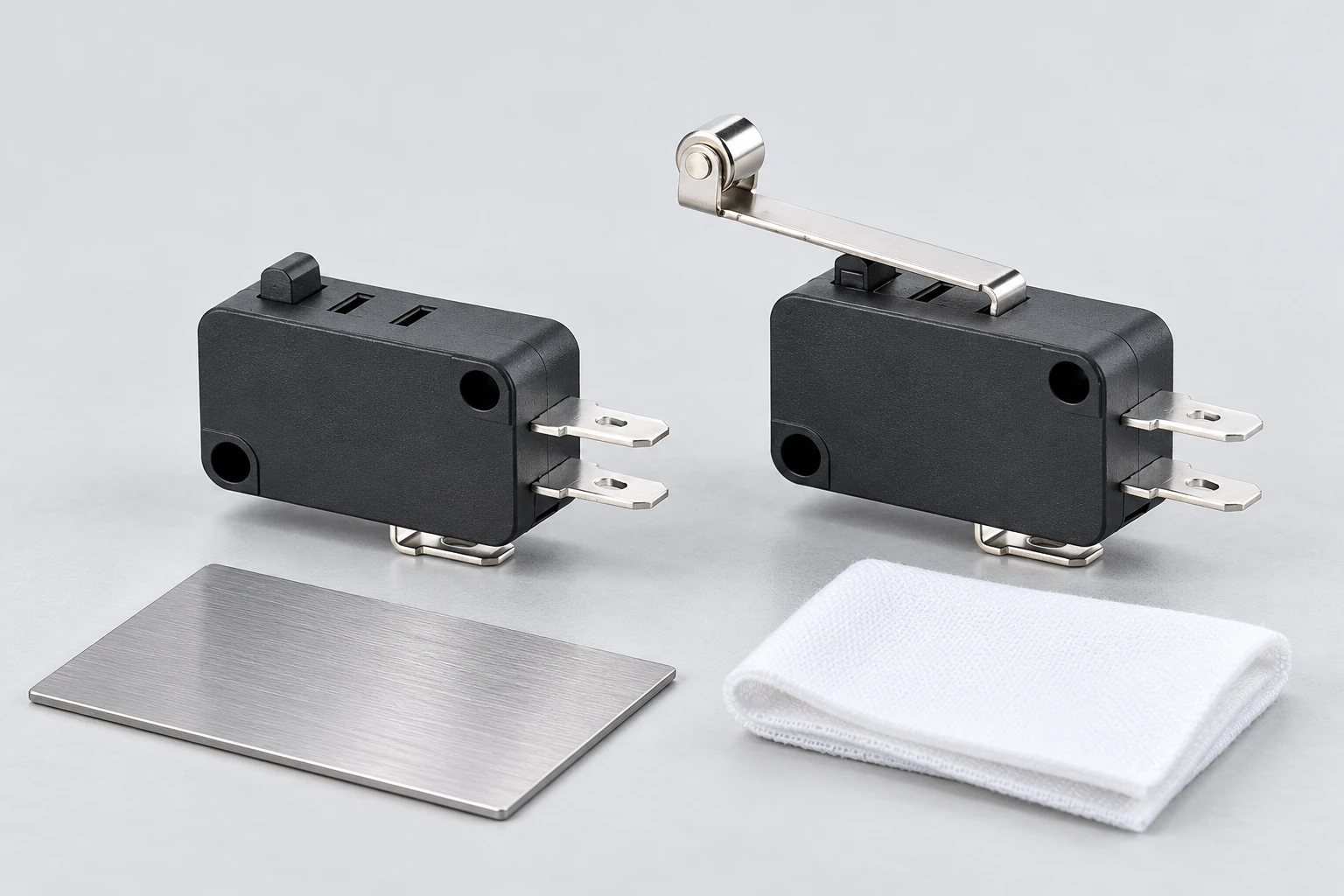

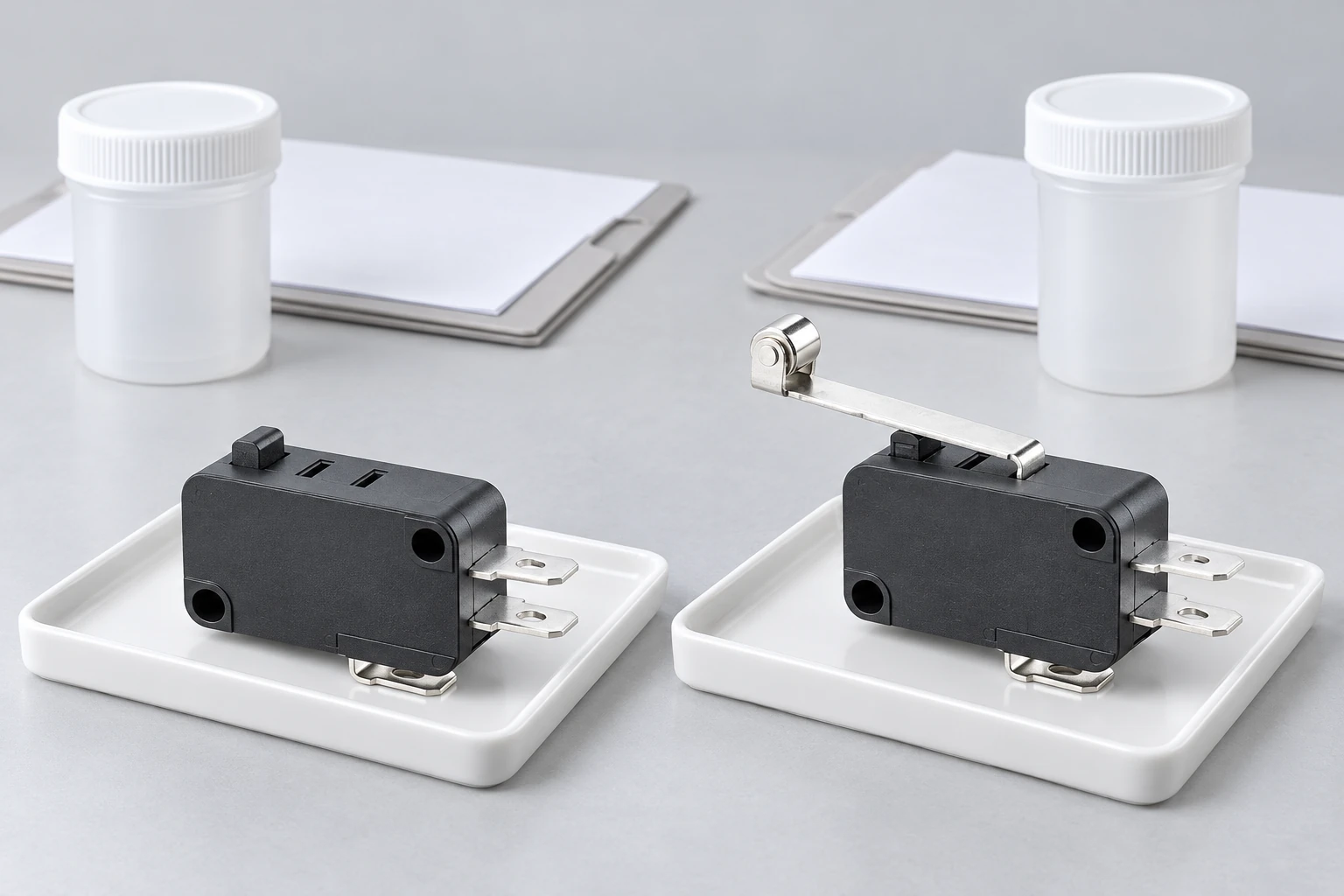

The LEMA KW7 family is the visible product reference in this guide. The closed bottle and dry specimens in the figures illustrate process review only. They do not identify an approved cleaner, demonstrate a cleaning result or claim that the illustrated variant is sealed against chemical entry.
Define why cleaning is being proposed
Identify the contamination and the reason it must be removed. Flux residue, machining debris, oil, handling contamination and an external cosmetic mark are different problems. Record where the material is located and whether the proposed process can move it toward an opening or contact system.
Also ask whether cleaning can be avoided by controlling the earlier process. A protective cover during assembly, cleaner handling or a revised material application may prevent contamination more reliably than a later cleaning operation. Such a change still needs review, but it can remove an unnecessary exposure.
Do not clean a failure-analysis specimen before its condition is recorded. The failure-mode guide explains why preserving original evidence matters. A cleaned suspect part cannot reveal every feature of the original contamination event.
Identify every material and interface at risk
Review the housing, actuator, seals where present, terminal region, markings, adhesives and adjacent assembly parts. A chemical may affect one material while leaving another apparently unchanged. External appearance alone cannot prove that the complete component remains acceptable.
Request the exact product variant and its supported cleaning guidance. A general plastic-material compatibility chart can help identify questions, but it does not establish the behavior of a finished switch with multiple materials and interfaces. Avoid transferring approval from another model or manufacturer.
Include the surrounding assembly. Cable insulation, a panel overlay, a potting material or a protective boot may have different limits from the switch body. The process has to remain acceptable for the complete configuration that will actually be exposed.
Describe the process, not only the chemical name
Record the cleaner identity and concentration, application method, temperature, exposure time, mechanical action, rinsing, drying and the point in assembly at which cleaning occurs. A wipe, directed spray, immersion and ultrasonic process are not interchangeable exposures.
Specify the orientation and pathways by which liquid can reach the component. Capillary paths, terminal openings or a moving actuator can matter to the exposure. Do not assume that applying a small amount externally prevents entry into the assembly.
Where the process uses a mixture or a proprietary product, retain its technical and safety documents. Do not substitute a similarly named cleaner without review. A change in concentration, temperature or method can require a new compatibility assessment even when the product name remains unchanged.
Keep worker safety and component compatibility separate
A process must be assessed for the people performing it as well as for the component. The HSE COSHH assessment guidance explains the need to understand exposure and control measures for hazardous substances. It is not a declaration that a cleaner is safe for a switch.
Conversely, a supplier’s component-compatibility statement does not replace the workplace assessment. Follow the cleaner’s safety information and the facility’s approved procedure. Do not create an improvised mixture, apply an unknown aerosol to energized equipment or rely on odor as an exposure measure.
This article intentionally provides no solvent recipe or universal exposure limit. The useful output is a documented process boundary and evidence for the specific combination, not a list of liquids that readers might apply without qualification.
Do not confuse enclosure protection with chemical approval
The IEC 60529 catalogue identifies the standard addressing degrees of protection provided by enclosures. An enclosure-protection designation does not, by itself, document compatibility with every cleaner, concentration, temperature or application method.
Read the exact product conditions and any installation requirements. A component can depend on a particular panel, seal or cable arrangement. A rating applying to one boundary may not cover liquid directed at another part of the assembly during manufacture or service.
The dustproof micro-switch guide addresses the related distinction between an environmental description and the actual exposure. Keep chemical-process approval as its own requirement rather than treating a higher-looking protection label as a universal solution.
Plan a representative compatibility study
Agree the specimens, process parameters and acceptance criteria before exposing samples. Use the production-equivalent switch and surrounding materials. Identify the unexposed comparison specimens and preserve their traceable identity.
The study should examine the characteristics that the exposure could affect. Those may include external condition, actuator movement, markings, insulation behavior or contact performance, as appropriate to the product and application. Select the actual tests through the responsible engineering and supplier review rather than inventing a universal checklist of numerical limits.
Record the condition before exposure, immediately afterward and after any specified stabilization or aging interval. A part that appears satisfactory while still wet has not established its later behavior. Conversely, a short visual check cannot approve every long-term effect of an unqualified process.
| Process field | Information required | Unacceptable assumption |
|---|---|---|
| Chemical | Exact product concentration and documentation | A similarly named cleaner is equivalent |
| Application | Wipe spray immersion or other method | Every exposure suits the same approval |
| Conditions | Temperature duration rinse and drying | A visually dry part is fully qualified |
| Materials | Switch and surrounding assembly identities | A housing-only chart approves the complete part |
| Evidence | Representative specimens and stated criteria | One cosmetic check proves long-term compatibility |
Treat residue and drying as controlled steps
Removal of visible contamination can leave another residue. Rinsing or drying may also introduce additional temperature, moisture or mechanical exposure. Include those steps in the qualification instead of evaluating only the initial cleaner application.
Do not assume that heating a wet switch is an approved recovery process. Temperature limits, trapped liquid and material compatibility still need evidence. Segregate questionable material and seek the supported disposition rather than returning it to production because it looks dry.
The storage and lot-release guide addresses the separate handling of material after uncertain exposure. Cleaning should not erase its traceability or mix investigated specimens back into untouched inventory.
Review cleaning after soldering separately
A soldered assembly can have process requirements that differ from the switch’s own allowed exposure. The soldering-precautions guide explains why heat, flux application and rework need their own controls.
Do not conclude that a board-cleaning process is acceptable for every mounted switch merely because it suits the solder joint. Identify the component’s restrictions and the production sequence. Where a supplier recommends a protective or process arrangement, document exactly what it covers and how its installation will be controlled.
If the switch cannot tolerate the proposed process, review a different assembly sequence, protection method or supported component selection. Avoid approving a destructive workaround merely to preserve an existing cleaning recipe.
Control changes and release decisions
Record the approved cleaner, equipment, parameters, component revision and acceptance evidence in the manufacturing instruction. Define how substitutions, maintenance changes and operator adjustments are reviewed. A verbal statement that a cleaner has “always been used” is not a reproducible approval record.
For a failed or ambiguous result, preserve the exposed samples and compare them with the unexposed controls. Document deviations and the actual exposure. Do not repeatedly clean the specimens until the result becomes easier to accept.
Send the complete process description and model identity through the LEMA contact page. The right question is whether the specific exposure is supported and what evidence is required, not whether a generic solvent is good for micro switches.
Further learning: material behavior under exposure
nptelhrd: Mod-01 Lec-16 Dielectric (Insulating) Solids. NPTEL explains dielectric insulating materials. It is background for considering insulation among the characteristics reviewed after exposure; it does not approve a solvent, cleaning method or switch model.
Watch Mod-01 Lec-16 Dielectric (Insulating) Solids.
Frequently asked questions
Does an IP rating approve solvent cleaning?
No. An enclosure-protection designation does not establish compatibility with every chemical or process. Confirm the exact model, assembly boundary and supported cleaning conditions, then assess the actual concentration, temperature, duration and application method.
Can I try an unknown cleaner on production switches?
Do not use production material as an uncontrolled compatibility experiment. Identify the process and supplier guidance, define representative samples and acceptance criteria, and segregate exposed material until the required review has established its disposition.
Is a plastic compatibility chart enough?
It can help identify questions but does not approve a finished switch with multiple materials, interfaces and internal features. The complete variant, surrounding assembly and actual exposure need their own supported compatibility assessment.
Does a clean-looking switch prove the process worked safely?
No. Appearance does not establish actuator, contact, insulation, marking or longer-term behavior. Use the approved evaluation and drying conditions, preserve comparison samples and document the exact exposure and any deviations before release.
