A 3-position toggle is a state map first and a hardware SKU second. Document what each lever position energizes, whether center is off, and how the operator should rest the control. Only then request samples against a mounting drawing.
Important: A three-position lever does not prove center-off or maintained side paths. Confirm each rest position against the model drawing and the panel logic. Source note: IEC 61058-1 publication scope and selected-model documentation.
– FAQs
Part 1. What does a 3-position toggle add to a panel?
Three positions give the panel two active directions or modes plus a middle rest. That package is useful for forward-off-reverse, mode A / off / mode B, or similar operator scripts.
| Decision field | Input to document | Send with quote |
|---|---|---|
| State map | Action at up, center, down | Yes — labeled schematic |
| Center behavior | Off or maintained path | Yes — explicit note |
| Load path | Which contacts carry which load | Yes — contact assignment |
| Panel fit | Cutout and clearance | Yes — mounting drawing |
Start family browsing from the LEMA Toggle Switch product line after the state map exists.
Part 2. How should each lever state be documented?
Write each state in operator language and in electrical language. “Up = forward contactor,” “center = both off,” “down = reverse contactor” prevents ambiguous BOM text.
If the panel only needs two maintained states without a true middle rest, compare against the ON-OFF versus ON-OFF-ON logic guide before freezing a three-position package.
Part 3. When is center-off the required resting behavior?
Center-off is required when both active paths must be de-energized at rest. If center is actually another live path, say so explicitly; silent assumptions create unsafe harnesses.
Spring-return to center is a different requirement from maintained center-off. Momentary return belongs in the momentary spring-return selection review.
Part 4. Which cutout and clearance checks matter most?

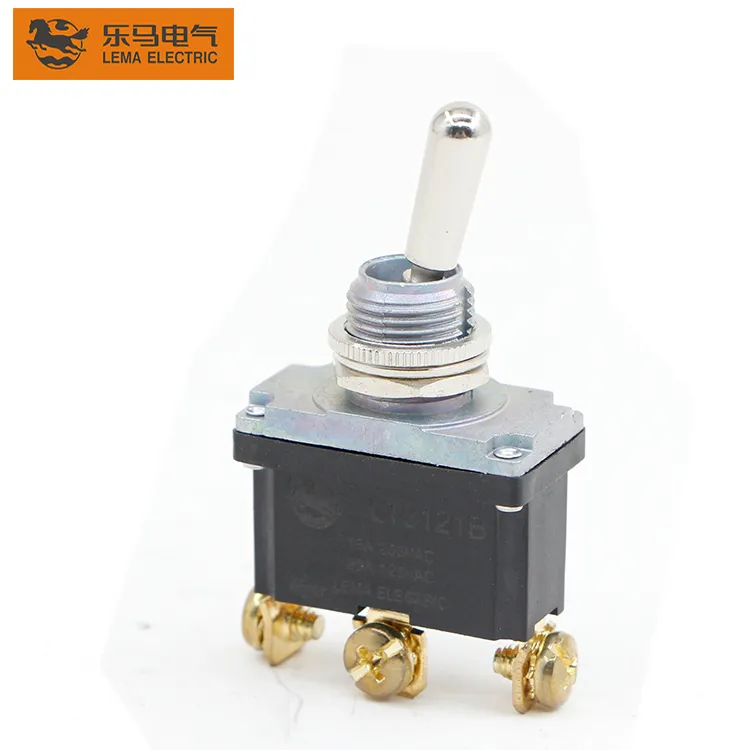

Three-position levers often need more swing clearance than simple ON-OFF controls. Capture hole size, panel thickness, locknut stack, lever arc, and any boot or guard envelope on one drawing.
- Confirm bushing thread against the model drawing.
- Reserve space for full travel in both directions.
- Check adjacent legend plates for interference.
- Sealed fronts need an additional review via the IP67 waterproof toggle sealing review.
Part 5. How do terminals and load notes stay aligned?
Keep terminal style matched to the harness process, and keep load notes tied to each energized state. A shared current number that ignores which path is live is not enough.
| Note | Strong version | Weak version |
|---|---|---|
| Load | Current per energized path with inrush | One unlabeled amp figure |
| Terminals | Screw or QC mapped to harness | Terminal TBD |
Part 6. How should three-position panels be validated?
Validate both active directions, the center rest, labeling, and harness pinouts on a production-intent panel. Confirm the operator cannot leave an unintended live path.
Fit Boundary: this guide plans three-position OEM panel selection. It does not certify ratings, prove sealing, or establish a safety function.
Part 7. How can LEMA support a 3-position inquiry?
Use the LT1 series toggle switch page once the state map and mounting envelope are complete. Sealed duty should move to a waterproof series review after exposure is defined.
Send with the inquiry:
- Three-position state map with center behavior
- Load and inrush per energized path
- Cutout, panel thickness, and clearance
- Terminal plan, volume, and sample timing
Product recommendation: request a documented LEMA review against the state map. Do not approve a “3-way” label without contact assignment.
Send a toggle-switch RFQ with the drawing package attached.
## FAQs
What is a 3-position toggle switch used for?
It gives two active lever states plus a middle rest, commonly for forward-off-reverse or mode A / off / mode B panel scripts.
Does center always mean off?
No. Confirm whether center is off or another maintained path against the selected model documentation.
Is a 3-position toggle the same as ON-OFF-ON?
They often overlap, but the printed circuit form and state map are the authority, not the marketing nickname.
Do I need extra panel clearance?
Usually yes. Bidirectional lever travel and any boot or guard need explicit clearance on the mounting drawing.
Can a 3-position toggle be waterproof?
Sealed constructions exist as a separate review; document the exposure envelope and use a waterproof series path when required.
What belongs in a 3-position toggle RFQ?
Include the state map, center behavior, load per path, cutout, terminals, environment, volume, and sample timing.
