A waterproof toggle boot is a matched seal accessory, not a universal rubber cap. Match bushing thread, panel face, and exposure intent first. Only then request a sealed-series review against the assembly drawing.
Important: A rubber boot does not automatically deliver a rated ingress result. Confirm bushing fit, chemistry, and the sealed series documentation before washdown duty. Source note: NKK M series waterproof toggle datasheet and IEC 61058-1 publication scope.
– FAQs
Part 1. What job does a waterproof toggle boot perform?
Boots protect the lever opening and help the panel gasket story when splash, wash-down spray, or dust is present at the front face. They do not automatically define an IP result for the whole enclosure.
| Decision field | Input to document | Send with quote |
|---|---|---|
| Bushing | Thread / diameter from drawing | Yes — bushing callout |
| Panel stack | Thickness and gasket face | Yes — section view |
| Exposure | Splash, wash, dust, chemicals | Yes — environment note |
| Circuit form | Maintained or momentary states | Yes — logic note |
Sealed family browsing starts at the LEMA Toggle Switch product line and the waterproof series route below.
Part 2. How should bushing thread and panel stack be matched?
Most boot failures start at the thread and bushing interface. Confirm the boot against the selected bushing, nut stack, and panel thickness rather than ordering by a nominal “standard toggle” label.
For sealed-switch context beyond the boot alone, see in the IP67 waterproof toggle sealing review.
Part 3. Which exposure and cleaning notes belong in the RFQ?
Write how the panel is cleaned and whether solvents, hot spray, or outdoor UV are present. Chemical attack and UV aging change boot material choices even when splash geometry looks fine.
| Exposure | Capture | Risk if vague |
|---|---|---|
| Wash-down | Pressure, angle, detergent | Seal path overstated |
| Dust | Particle type and accumulation | Lever binding |
| Chemicals | Fluid list | Boot swelling or cracking |
Part 4. How do boots interact with guards and legends?
Guards and boots can stack, but they compete for space. If accidental actuation is also a concern, coordinate with the safety cover and guard selection envelope instead of improvising on the line.
Compact panels may need the clearance habits in the mini panel-mount selection guide.
Part 5. Which assembly mistakes break the seal in production?
Common production mistakes include missing flat washers, over-tightened nuts that cut the gasket, boots installed after wiring damage, and unlabeled spare boots that do not match the bushing.
- Torque to the model drawing, not by feel alone.
- Keep boot and switch lots paired in kitting.
- Inspect for folds or pinches after install.
Part 6. How should booted toggles be validated?
Validate the assembled panel under the documented splash or cleaning method, check lever feel through the boot, and confirm terminals behind the panel remain dry per the enclosure plan.
Fit Boundary: this guide plans waterproof boot fit for OEM panels. It does not certify an IP class, chemical resistance result, or electrical rating without model documentation.
Part 7. How can LEMA support a waterproof-boot inquiry?

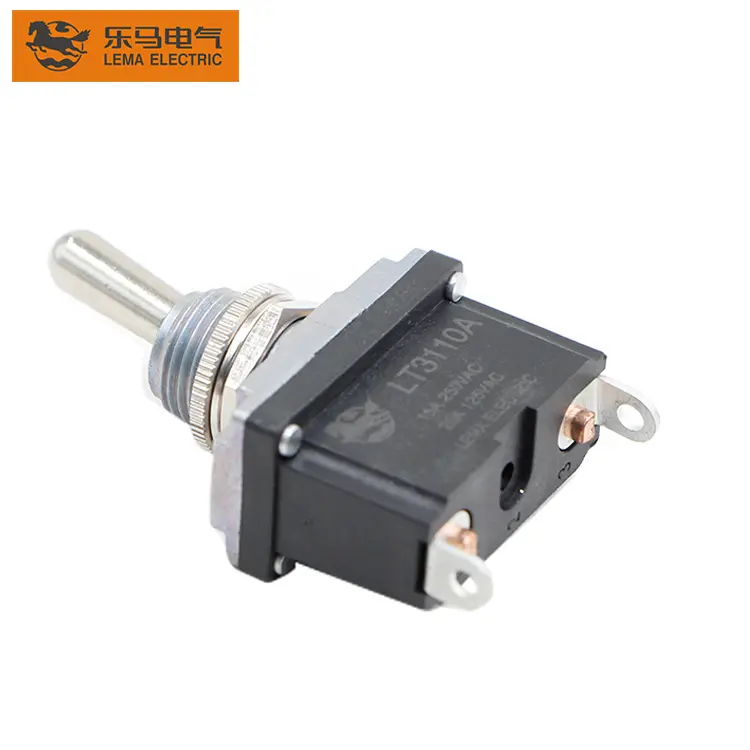

Use the LT3 series waterproof toggle switch page as the public sealed-series starting point once bushing and exposure notes are complete.
Send with the inquiry:
- Bushing thread and panel section view
- Exposure, cleaning, and chemical notes
- Circuit form and terminal plan
- Volume and sample timing
Product recommendation: request a documented LEMA sealed-series review against the boot drawing. Do not claim an IP result from a boot photo alone.
Send a toggle-switch RFQ with the seal package attached.
## FAQs
Does a waterproof toggle boot create an IP rating by itself?
No. The boot is part of an assembly; confirm ingress claims against the selected sealed-series documentation and the enclosure design.
How do I match a boot to a toggle?
Match bushing thread, panel thickness, and gasket face from the model drawing rather than ordering by a generic size nickname.
Can I use a boot with any toggle series?
Only when the bushing and accessory are documented as compatible; mismatched threads leak or damage parts.
Is a boot the same as a safety cover?
No. Boots target sealing; covers/guards target accidental actuation and may be separate accessories.
What cleaning details matter for boot selection?
Pressure, detergents, solvents, temperature, and UV exposure all belong in the RFQ because they affect elastomer choice.
What should a waterproof boot RFQ include?
Include bushing thread, panel stack, exposure and cleaning notes, circuit form, volume, and sample timing.
